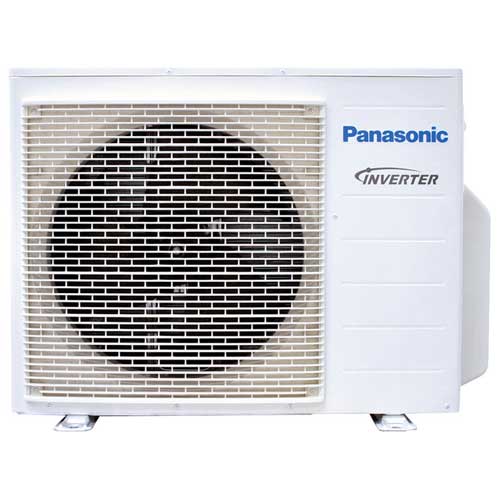

Multi-Zone Split Heat Pumps

Panasonic has over 53 years of air conditioning experience and the RAC Multi E Series mini splits are a prime example. These zone mini split systems have inverter technology and are designed to give you individual control over the temperature of multiple rooms. Paired up with multiple indoor units that have multiple operating modes' multiple fan speeds' and multiple airflow directions' this is a system that fits the needs of nearly any home.

  • Cold Resistant Can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.
  • Inverter Technology Panasonic inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.
  • Blue Fin Condenser Condensers are constantly exposed to wind' dust and salty air that take their toll on your unit. Panasonic coats their condensers with an anti-rust coating to extend its lifespan.
  • ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location' movements' absence and sunlight intensity.
  • Installation Flexibility Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-5E36QBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.

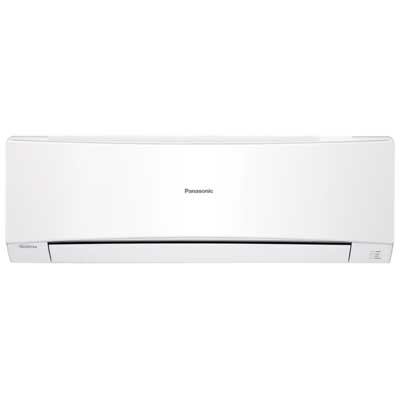

  • Wall Mount Indoor Units
  • 4-Way Airflow Design Sends Cool Air in all Directions
  • Whisper-Quiet Operation
  • Integrated Drain Pump
  • ECONAVI Activity and Absence Detection

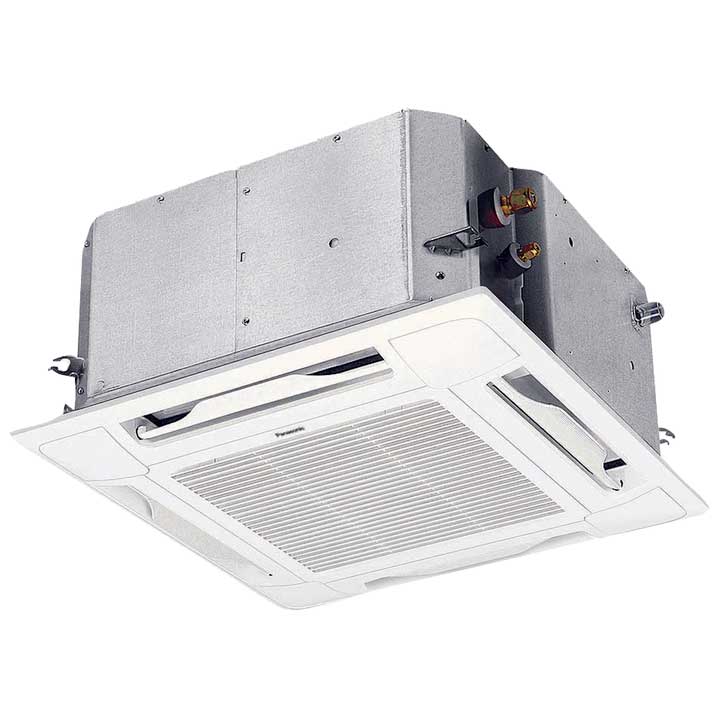

  • Ceiling Cassettes
  • 4-Way Airflow Design Sends Cool Air in all Directions
  • Integrated Drain Pump
MODELTypeUnit Match or Number of ZonesClg Cap MBtuHSEERHtg Cap MBtuHHSPFRefrigerant ConnectionsDimensions HxWxDWeight
CU-2E18NBUOutdoor Up to 2 Zones 16.7 18.0 20.2 8.8 31.3x34.4x12.6 152
CU-5E36QBUOutdoor Up to 5 Zones 36.0 18.5 37.8 10.0 39.4x37.1x13.4 193
CU-3E19RBUOutdoor Up to 3 Zones 19.0 22.0 26.0 10.5 31.3x34.4x12.6 159
CU-4E24RBUOutdoor Up to 4 Zones 24.0 22.0 37.8 9.5 39.4x37.1x13.4 183
CS-ME5RKUAWall Up to 5 Zones 5.5 0.0 8.9 0.0 1/4-3/8 11.4x34.3x8.4 0
CS-ME7RKUAWall Up to 5 Zones 6.9 0.0 10.9 0.0 1/4-3/8 11.4x34.3x8.4 0
CS-E9RKUAWWall Up to 5 Zones 8.6 0.0 12.3 0.0 1/4-3/8 11.4x34.3x8.4 0
CS-E12RKUAWWall Up to 5 Zones 10.9 0.0 15.3 0.0 1/4-3/8 11.4x34.3x8.4 0
CS-E18RKUAWWall Up to 5 Zones 17.1 0.0 23.4 0.0 1/4-1/2 11.4x42.3x9.4 0
CS-E24RKUAWWall Up to 5 Zones 24.0 0.0 28.8 0.0 1/4-5/8 11.4x42.3x9.4 0
CS-E12RB4UWCassette Up to 5 Zones 10.9 0.0 15.3 0.0 1/4-1/2 10.25x22.75x22.75 40
CS-E18RB4UWCassette Up to 5 Zones 17.1 0.0 23.4 0.0 1/4-1/2 10.25x22.75x22.75 40

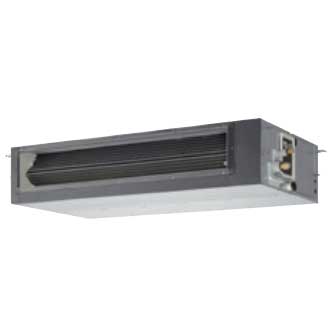

CS-E9SD3UAWDucted Up to 5 Zones 9.0 0.0 12.0 0.0 1/4-3/8 7.9x29.6x25.3 42
CS-E12SD3UAWDucted Up to 5 Zones 11.5 0.0 13.8 0.0 1/4-1/2 7.9x29.6x25.3 0
CS-E18SD3UAWDucted Up to 5 Zones 17.2 0.0 20.8 0.0 1/4-1/2 7.9x29.6x25.3 42

Warranty Information

  • Compressor for 84 months -
  • All Parts for 60 months -

Available Documents
